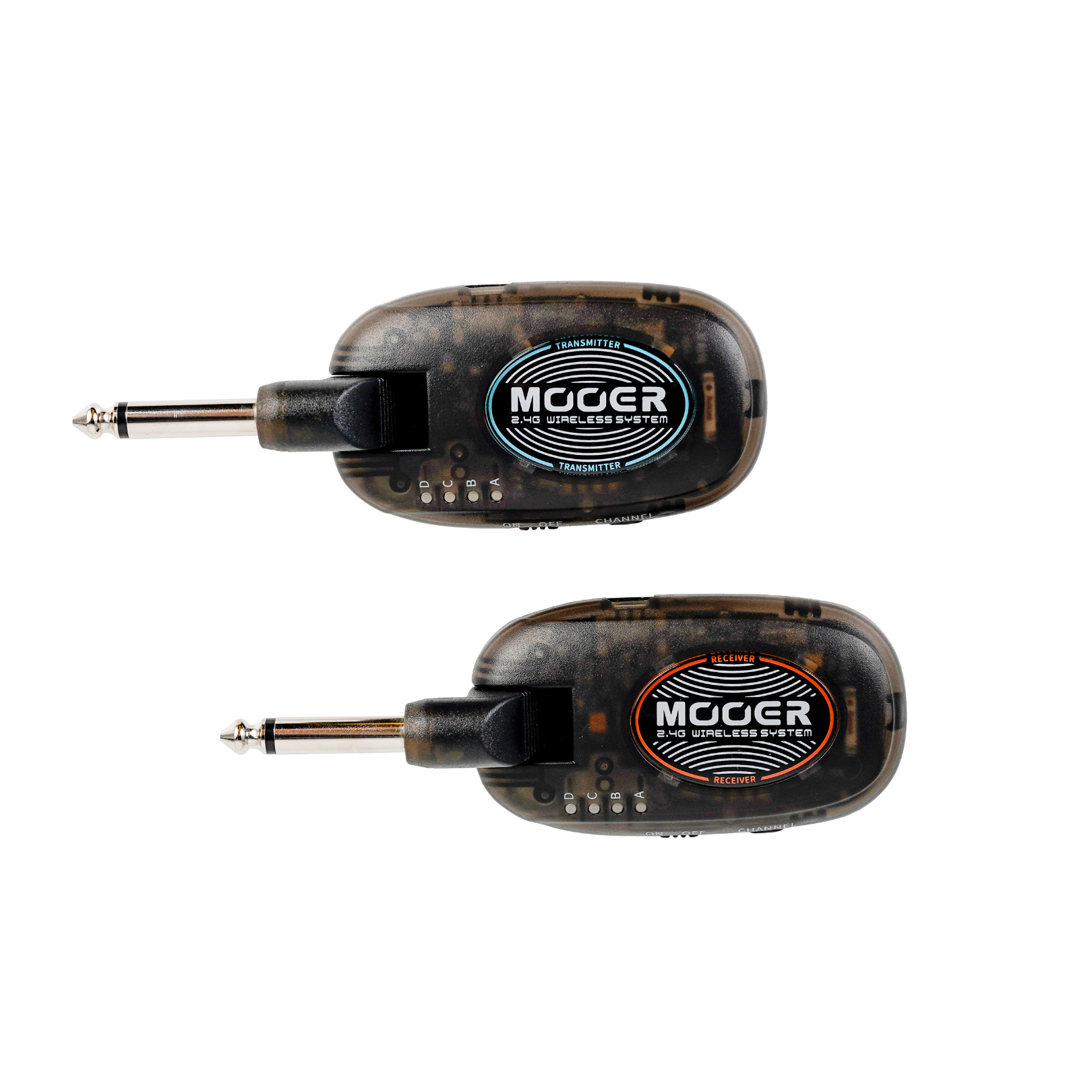

The Mooer P10 Plug Wireless Guitar System offers guitarists exceptional portability, reliability, and ease of use. Designed with the MOOER Micro series’ compact and intuitive features, the P10 Plug provides seamless performance with a range of up to 45 feet and a 5-hour battery life.

Key Features:

• 4 Individual Channels: Enables up to 4 guitars to operate simultaneously, ideal for multi-instrument setups.
• Range: Effective distance of up to 45 feet, allowing for freedom on stage or in the studio.
• Low Latency: Less than 5ms latency ensures a near-instantaneous response between your guitar and amplifier.
• Power Saving Mode: Extends battery life for longer performances and practice sessions.
• Battery Life: 5 hours of continuous use on a single charge.
• Versatility: Suitable for electric guitars and acoustic instruments with piezoelectric pickups.

Setup Instructions:

1. Connect the P10 TRANSMITTER to your instrument and the P10 RECEIVER to the input of your amplifier or stompbox.
2. Power on both the TRANSMITTER and RECEIVER.
3. Ensure both devices are set to the same channel (default is Channel 1).
4. A stable connection is indicated by a green LED light. If the LED blinks, adjust the channel or check for electromagnetic interference to maintain signal integrity.
5. Charge using the included USB cable.

Specifications:

• Effective Distance: 15 meters (approximately 45 feet)
• Latency: Less than 5ms
• Frequency Response: 20-20k Hz, ±1dB
• Total Harmonic Distortion: <0.05% (1k Hz @ -10dBFS)
• Input Dynamic: >103dB
• Frequency Band: 2.4GHz ISM Worldwide
• Operating Temperature: -10°C to 50°C
• Bit Depth: 24-bit
• Sample Rate: 48kHz
• Dimensions: 117mm (D) x 42mm (W) x 30mm (H)
• Weight: 50g

Included Accessories:

• USB Cable
• Owner’s Manual
• Portable Pack

The Mooer P10 Plug Wireless Guitar System combines convenience, high performance, and robust design, making it an excellent choice for guitarists seeking reliable wireless connectivity.
